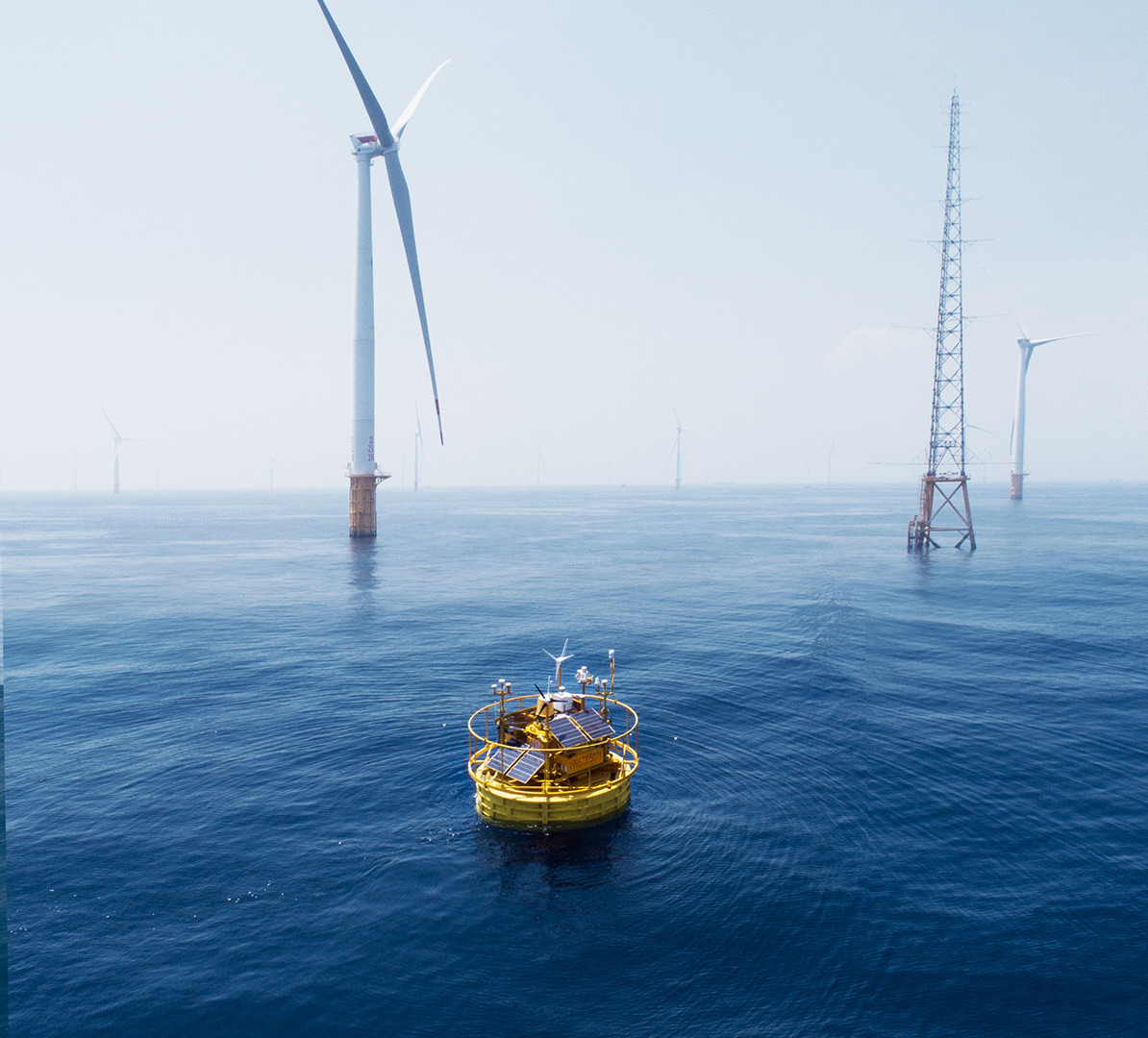

Metal Ocean Buoy Wave CTD Profile Current Oceanographic Buoy

-Diameter: 5m; -Height: 9m; -Weight: 14t; -Net Buoyancy: 10t

-Structure: multiple cabinets; -Materials: PE, carbon steel, stainless steel

-Water-depth: >5m

-Anchor: cement anchor 12t and/or high holding power anchor

-Mooring: one-point mooring with DIN5683-II chain

-Adjustable to suit site-specific requirements including larger water-depth

-Multiple mooring system is also available

-Battery Capacity: total 60kwh in multiple groups;

-Wind Turbines: 2×350W

-Solar Panels: 1600W, multiple groups

- Fuelcell: 2x110w with 8 tanks of fuel(224L)

-AIS×1

-Radar reflector×2

-IALA compliant navigation ligh1×-1

Supporting dual navigation ligh but need to meet the requirement of local authority

-Directions: 0-360°

-Direction accuracy: 0.09° (2m baseline)

-Positioning accuracy: 0.5m (horizontal, SBAS mode)

-SAT Modules: Iridium SBD×1,other Broadband SAT data modules (optional);

-Mobile Networks: 2G/3G/4G×1; 2.4G/5G Wi-Fi×2; Local Ethernet connection

-Dual Industrial PCs

-Interfaces: serial×6, Ethernet×2
